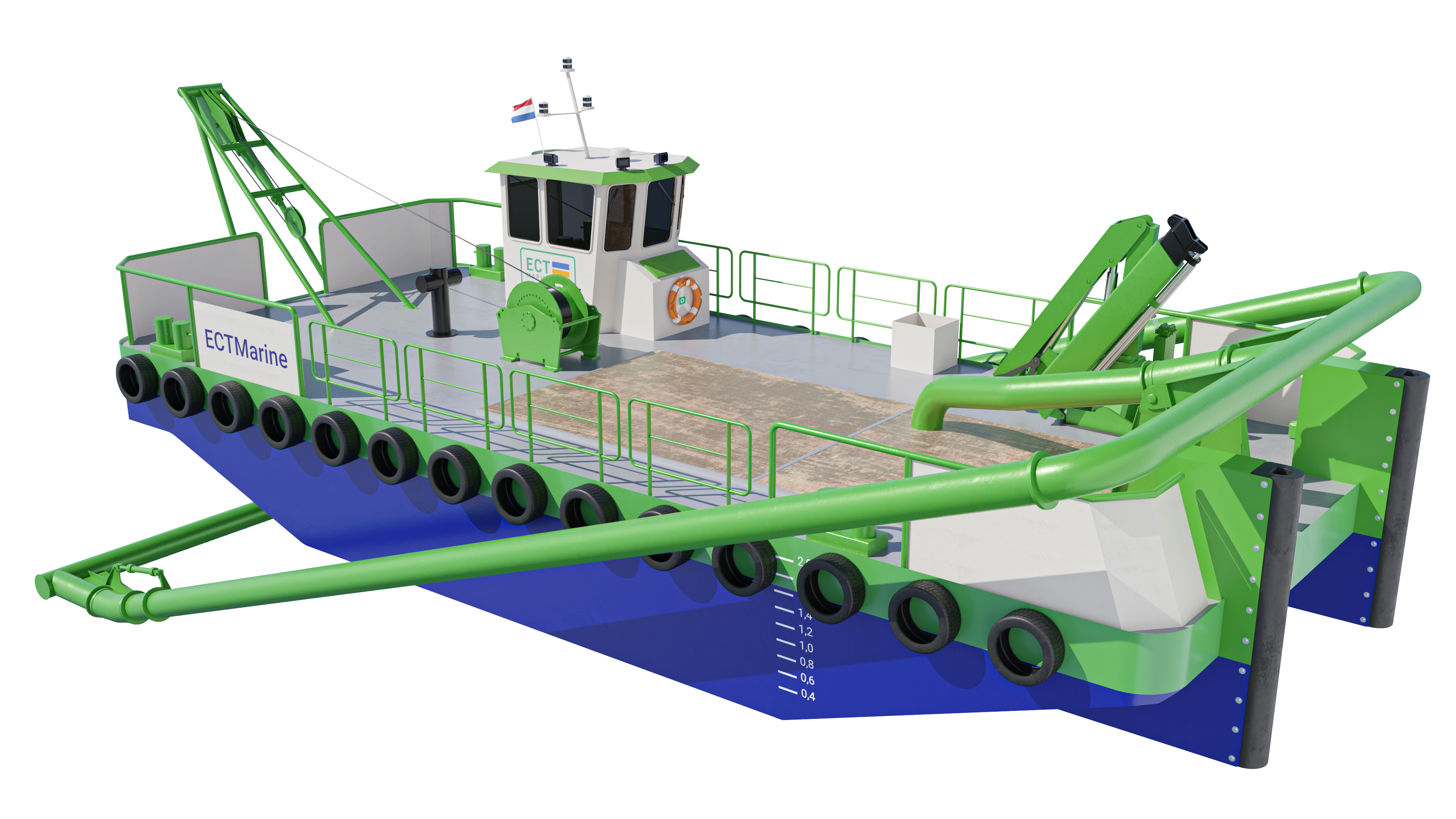

WORKBOAT 156

ECTMarine workboats are heavy duty workboats for different applications in the marine industry. The general design is a multicat type vessel, that can work in shallow waters as well as coastal area’s. The vessels are available in different sizes and with a variety of options and in different configurations such as dredge support vessel, supply vessel, carrier, pusher/ tug. The workboats have a spacious deck and are maneuverable to perform activities in confined area’s.

ECT MARINE BV
ENGINEERED PRODUCTS
PRODUCTDATA
WORKBOAT 156

Propulsion

Propulsion engine: Doosan, Volvo, Caterpillar

Power (approx): 2X 220kW

Propellers: 2x 4 blade fixed pitch propellers

Steering system: hydraulic plate rudder

Main Dimensions

Length overall: 15 m

Beam: 6 m

Depth at side: 2 m

Draught: 1,2 m

Deck equipment

Anchor handeling winch

Line pull first layer: 120 kN

Towing bitt

Bow roller

Wooden work deck

Electric installation

Alternator: 24V DC

Quantity: 2x

Capacity: 2x 60A

Batteries

Quantity: 3x

Capacity: 300 Ah

Ship systems

Compass, VHF, Fire extinguishers

Navigation and interior lights

Electric bilge pump

Mechanical ventilation

Internal cooling system

Hydraulic system powered by main engine

Grease pump and toolkit

Performance

Bollard pull ahead: 5 ton

Speed (approx): 7 knots

Deck crane (SWL): 20 tm

Classification (optional)

Bureau Veritas / Holland Register
Class I X HULL · MACH special service / Workboat Coastal Area

Tank capacities

Fuel oil: 9 m3

Main characteristics

The hull is a fully welded, longitudinally stiffened

The main marine engines with reduction gearbox is located in

the engine room.

Propulsion of the workboat will be realized by a fixed pitch propeller.

Steering is with plate rudder and powered by hydraulic steering gear.

The wheelhouse is constructed of steel and has acoustic and thermal insulation.

Optional Equipment

Diesel generator 230V with main switch board

Anchor mooring winch

Radar system
